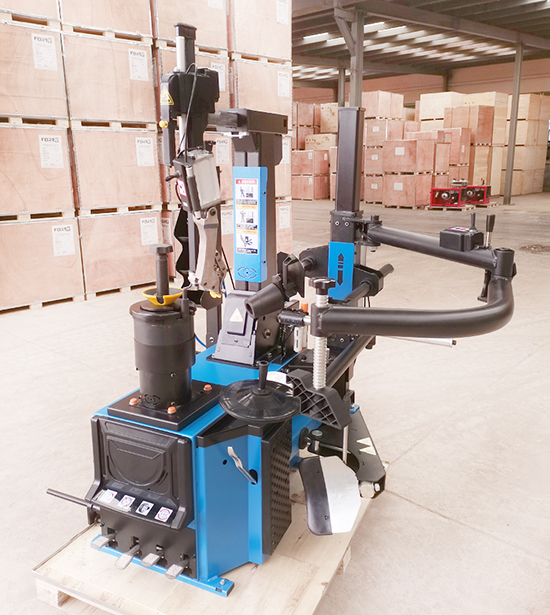

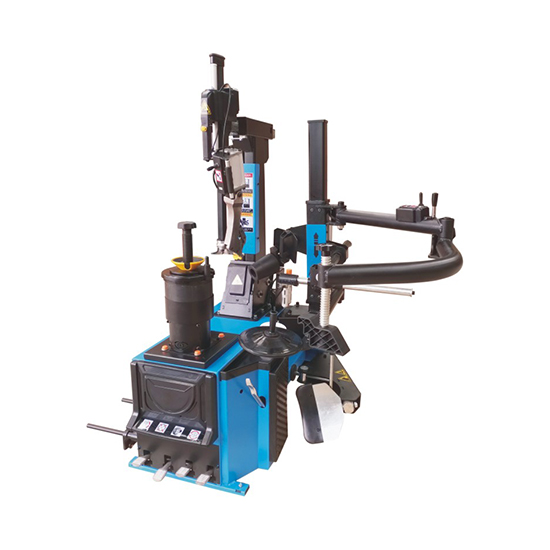

STC998+HF100A Automatic hook mounting head Tire Changer

Rim  Size 14"-28"
Max wheel diameter1180mm
Wheel width340mm
Working pressure8-10bar
Power0.75KW/1.1KW
Motor110V/220V/380V 50/60HZ

Features :

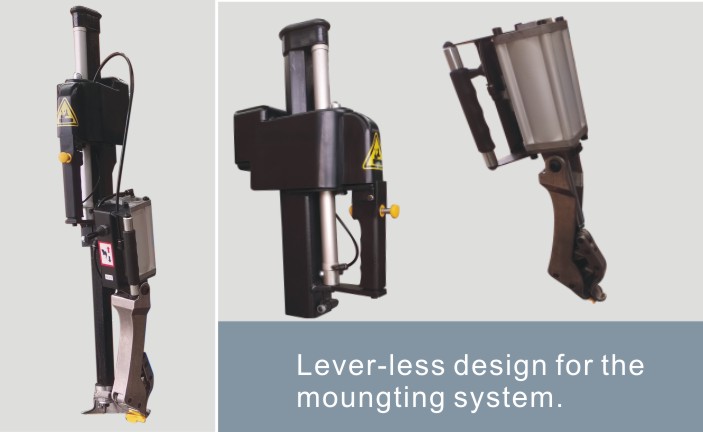

1、Lever-less design for the moungting system.

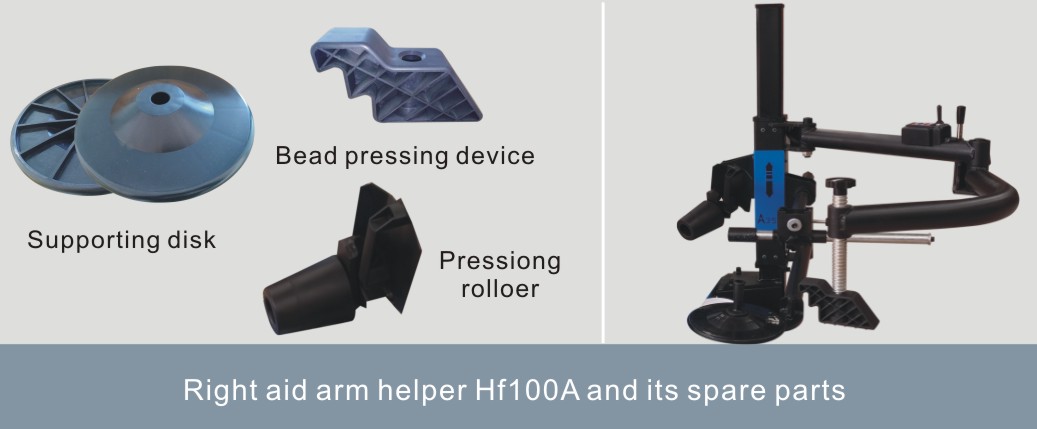

2、Equipped with right aid arm HF100A which makes mounting and demounting tire more  quicker and easier.

3、Piston of spade cylinder is high density aluminum casting  to prolong  its service life.

4、Adopt pneunematic locking device, operation easily and conveniently.

5、Wheel seat equip with nylon plate, can not damage the rim, suitable for many kinds of tire.

6、Universal switch ,40A silver contact, more reliable and durable.

7、Base of mechanical arm is a complete one set,

     inside  with wear-resistant macromolecule nylon slide block, to achieve smooth operating.

8、TThe products get the Europe quality standard, and gained Europe CE certification.
