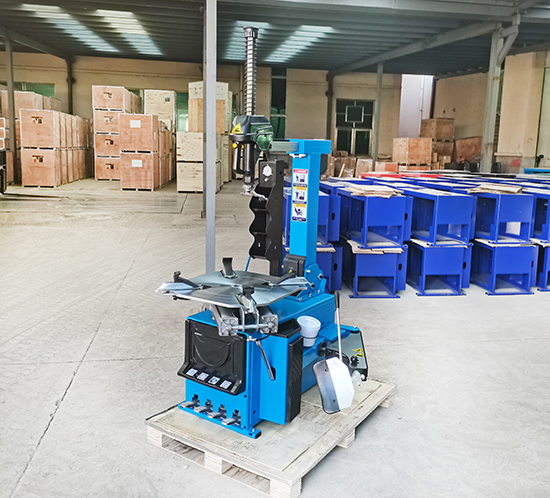

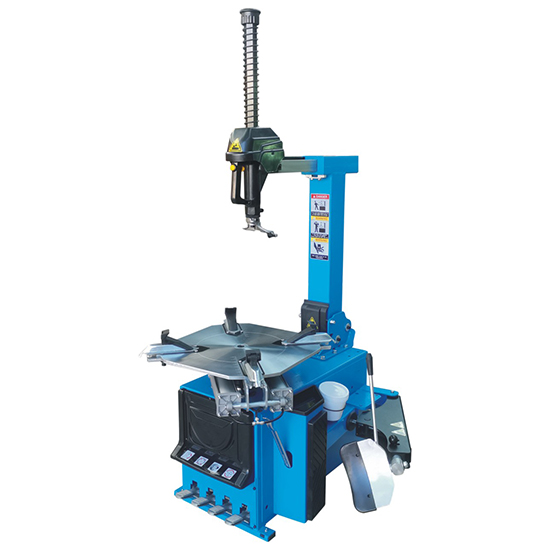

STC990A Automatic car tire changer

Outside clamp

10"-20""

Inside clamp13"-24"
Max wheel diameter1070mm
Wheel width355mm
Working pressure8-10bar
Power0.75KW/1.1KW
Motor110V/220V/380V 50/60HZ


Features :

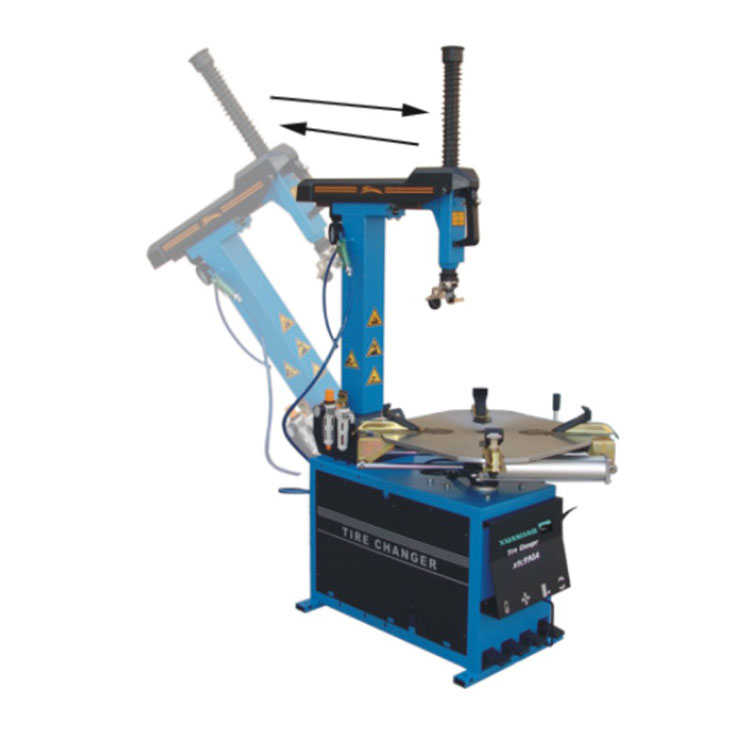

1、Pneumatic back tilting post, hexangular shaft and horizontal arm can be locked pneumatically at the same time.

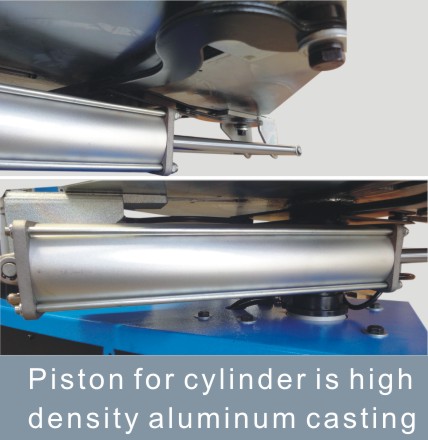

3、Piston of spade cylinder is high density aluminum casting to prolong its service life.

4、The clamping jaw is made of precision steel cast which is firm and durable.

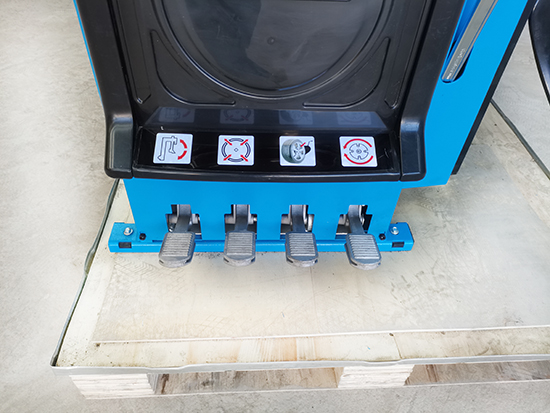

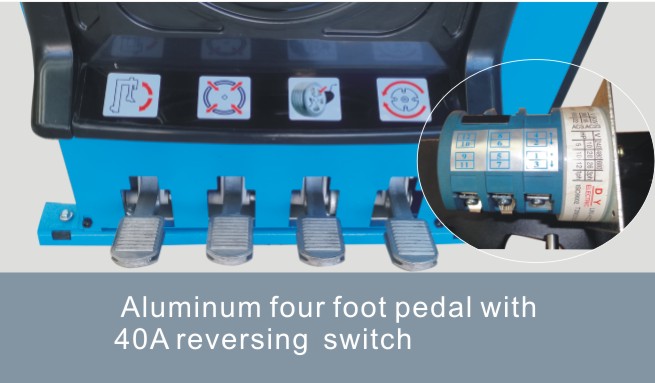

5、Universal switch, 40A silver contact,  more reliable and durable.

6、It has good personal presentation, thick steel plate and super strong rigidness.

7、The products get the Europe quality standard,  and gained Europe CE certification.

8、 Optional double speed motor.

9、Optional motorcycle adaptor
