Outside clamp | 10"-20"" |
Inside clamp | 13"-24" |
Max wheel diameter | 1070mm |
Wheel width | 355mm |
Working pressure | 8-10bar |
Power | 0.75KW/1.1KW |
Motor | 110V/220V/380V 50/60HZ |

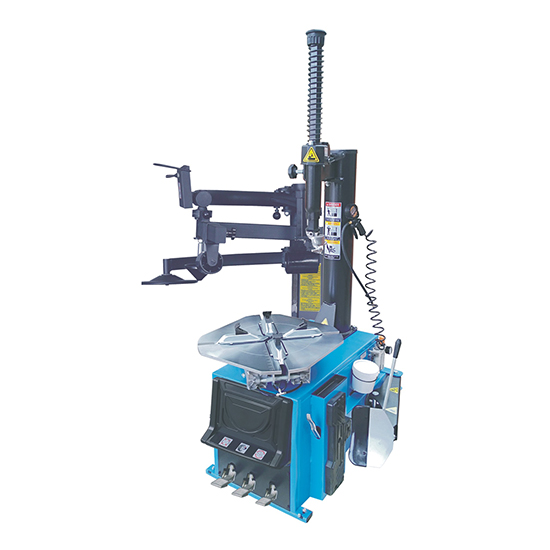

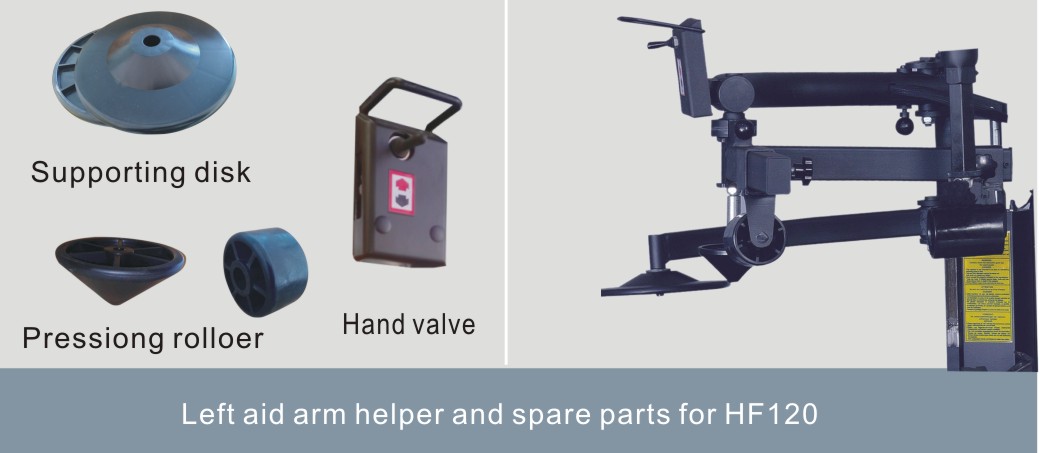

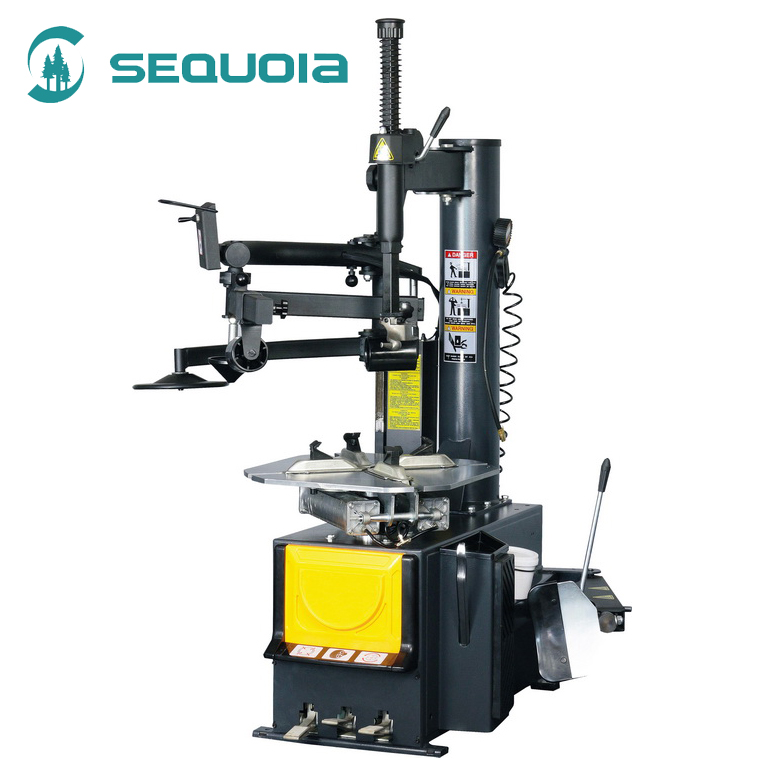

1、It is equipped with upper central helping hand NH120,which is reasonably structure, space saved and easy to operate.
2、Stainless steel working head.

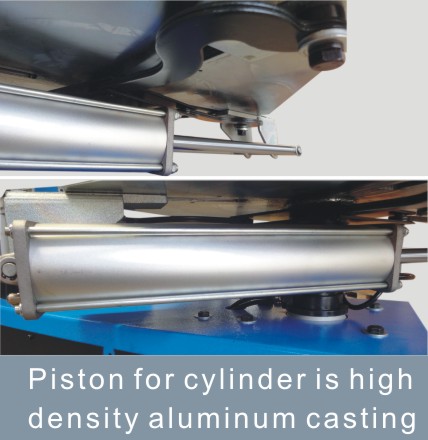

3、Piston of spade cylinder is high density aluminum casting to prolong its service life.
4、The clamping jaw is made of precision steel cast which is firm and durable.

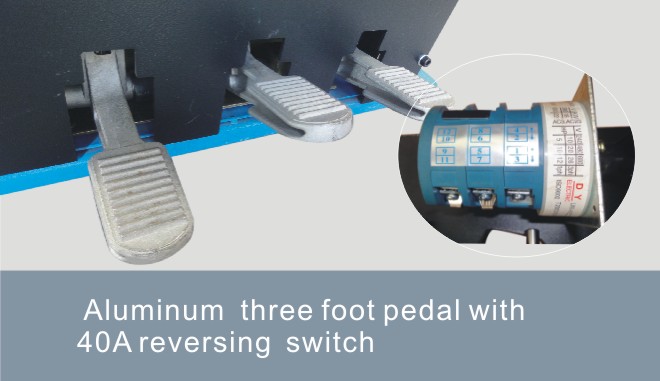

5、Universal switch ,40A silver contact, more reliable and durable.
6、When the machine is running, the noise is low.
7、It has good personal presentation, thick steel plate and super strong rigidness.
8、The products get the Europe quality standard, and gained Europe CE certification.
9、Optional double speed motor.
